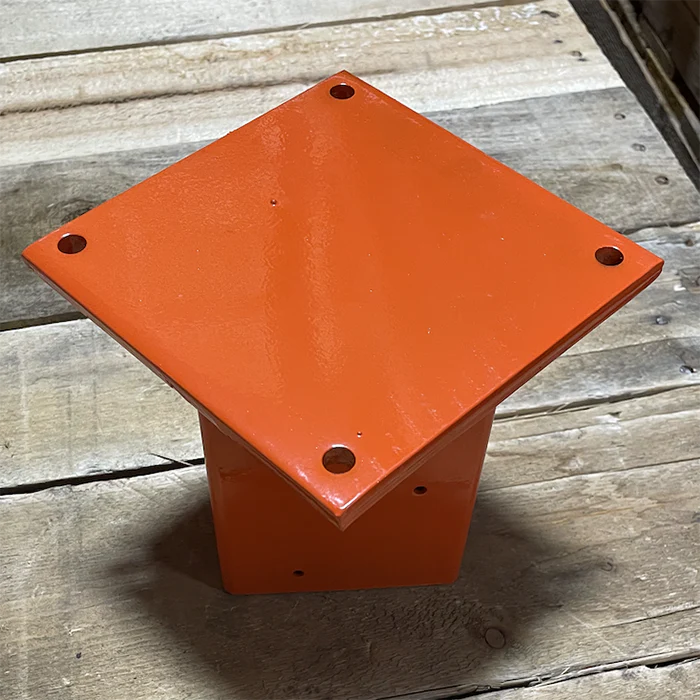

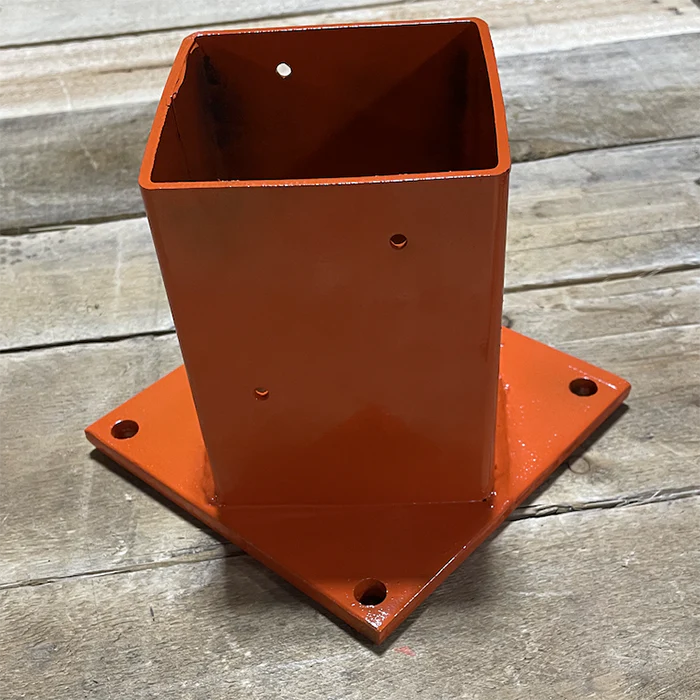

Flat Head/Base for Timber Nominal Posts

The Ellis Flat Plate Top/Base for 4x4 or 6x6 posts is a 8" x 8", 1/2" thick steel plate with four 9/16" diameter mounting holes.  Fits nominal cut lumber posts.

Specifications

The Ellis Flat Plate Top/Base for Timber Shores is available for 4x4 and 6x6 nominal dressed lumber posts. It come with 4 mounting holes and a 1/2" thickness for maximum support.

---

Specifications

FH-4

• Plate Thickness: 3/8"
• Plate size: 6" X 6"
• Plate Mounting Holes: (4) 9/16" Diameter Holes.
• Fits 4x4 Nominal Post


FH-6

• Plate Thickness: 1/2"
• Plate size: 8" X 8"
• Plate Mounting Holes: (4) 9/16" Diameter Holes
• Fits 6x6 Nominal Post
