Bolt-on Pivoting Plate for HD or LD Steel Shore

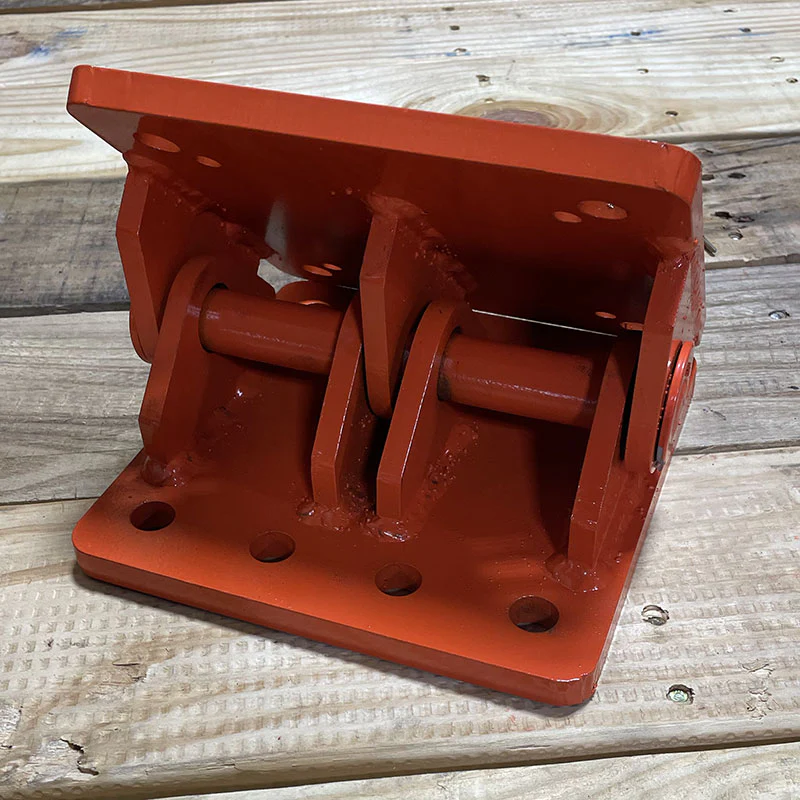

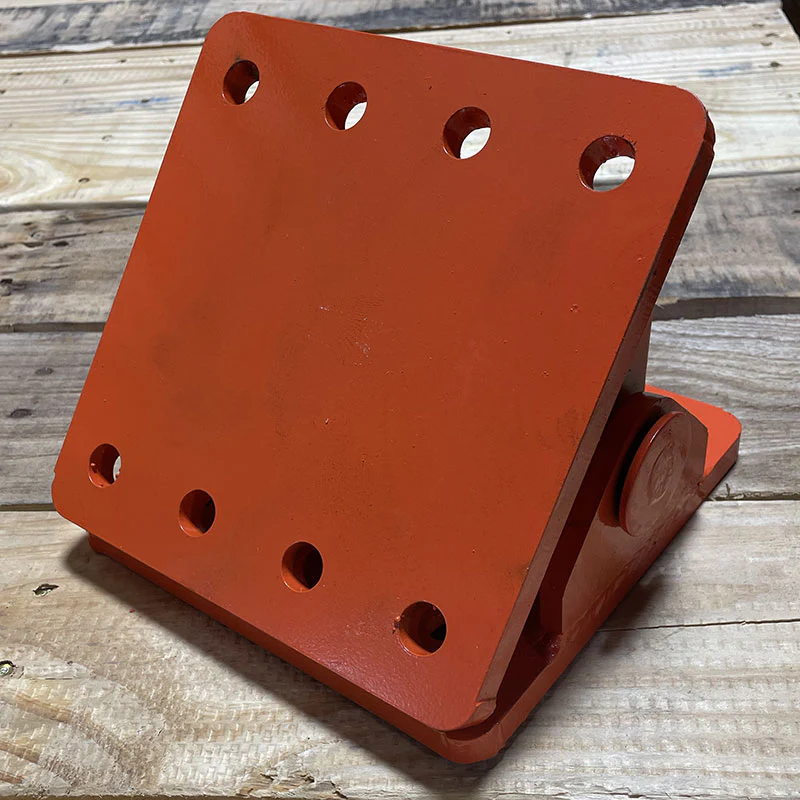

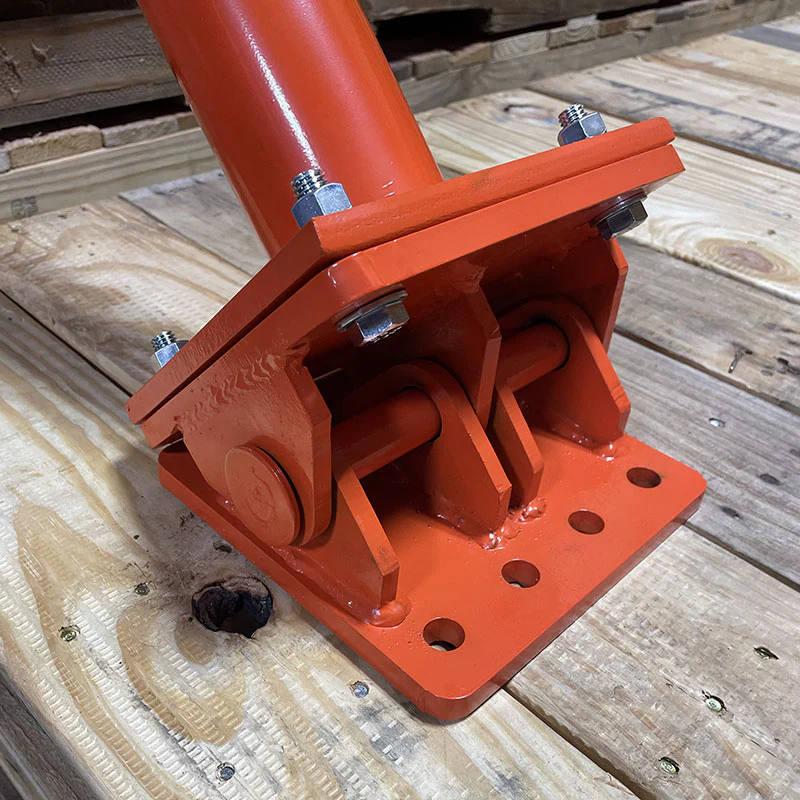

The Ellis Bolt-On Pivoting Flat Plate can be bolted to Ellis Steel Shores to add a 45 degree pivot to the base. Its modular design enables Heavy Duty Steel Shores to be used in either the standard vertical configuration or when bolted on used at an angle.
Specifications
Add a pivoting flat plate to the base of any Light or Heavy Duty Steel Shore. Constructed of ASTM A36 steel plate and a 1" diameter hinge pin provides ultimate safe load capacity.
*Contact Ellis customer support for load rating information
Specifications

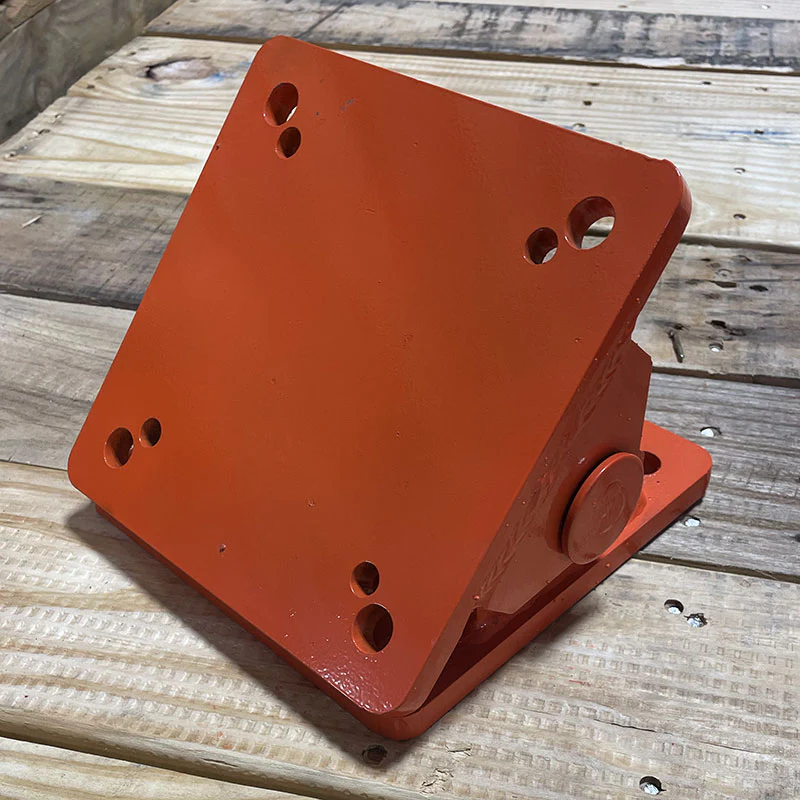

Top plate - ASTM A36 , 1/2"x8"x8" Steel Plate, 4- 1/2" holes for mounting to Light Duty Steel Shores and 4- 5/8" Holes for mounting to Heavy Duty Steel Shores
Hinge Brackets- ASTM A36 , 3/8" thick, 4 on bottom, 3 on top
Hinge Pin - 1" diameter, 8.125" long, ASTM A36 hot rolled
Base Plate - ASTM A36 , 1/2"x8" x8", 8 - 5/8" Holes
Shop Drawings:
| Item Number | Shop Drawing (.PDF) |
| BOP-FP88 | Coming Soon |
